Sinolift CQDX15 CQDX20 Pedestrian Scissors Electric Reach Stacker

Name: Sinolift CQDX15 CQDX20 Pedestrian Scissors Electric Reach Stacker
Brand: SINOLIFT
Price: 1 USD

Quality Sinolift CQDX15 CQDX20 Pedestrian Scissors Electric Reach Stacker for sale

Brand Name : SINOLIFT

Model Number : CQDX15 CQDX20

Certification : CE, ISO9001

Place of Origin : CHINA

MOQ : 1 set

Price : Negotiable

Payment Terms : L/C, D/A, D/P, T/T

Supply Ability : 55 units

Delivery Time : 15 DAYS

Packaging Details : Sandard Export Package

Product name : Sinolift CQDX15 CQDX20 Pedestrian Scissors Electric Reach Stacker

Driving style : Pedestrian

Load capacity : 1500kg/2000kg

Load Center Distance : 500 mm

Fork Dimension : 1070×100×35 mm

Reach Distance : 570 mm/590 mm

Warranty : 1 year

After service : on-line service,free spare parts

Contact Now

Product Name

Sinolift CQDX15 CQDX20 Pedestrian Scissors Electric Reach Stacker

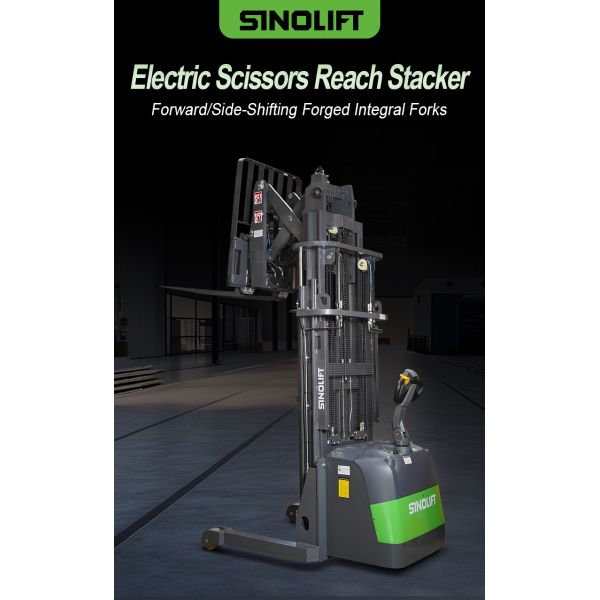

The Sinolift CQDX15 & CQDX20 Electric Scissors Reach Stacker is engineered for superior performance in confined spaces. Featuring a steering system and shearing forward function for unparalleled maneuverability, its robust design ensures durable performance where others can't reach. Ideal for warehouse, dock, and retail applications, it combines powerful lifting with intuitive electric operation for efficient, safe material handling.

Key Features

Sinolift CQDX15 & CQDX20: The Narrow-Aisle Specialist

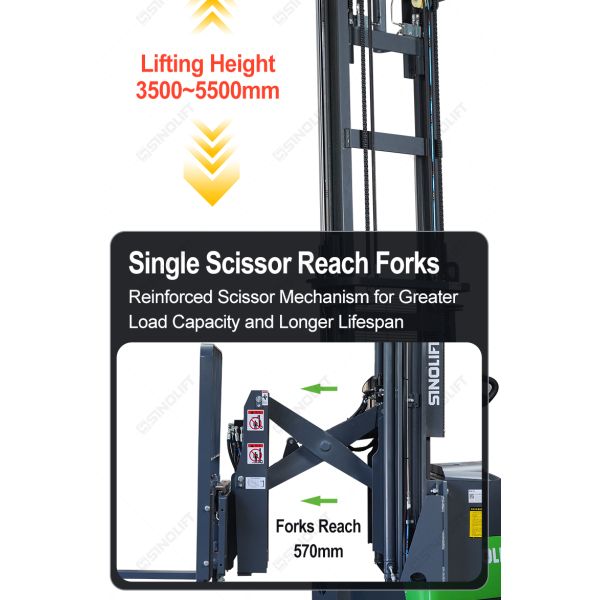

1. Unmatched Maneuverability: Featuring a precise steering system and a unique scissor-forward reach function, this stacker delivers unparalleled agility for operating in the tightest aisles and confined spaces where other equipment cannot fit.

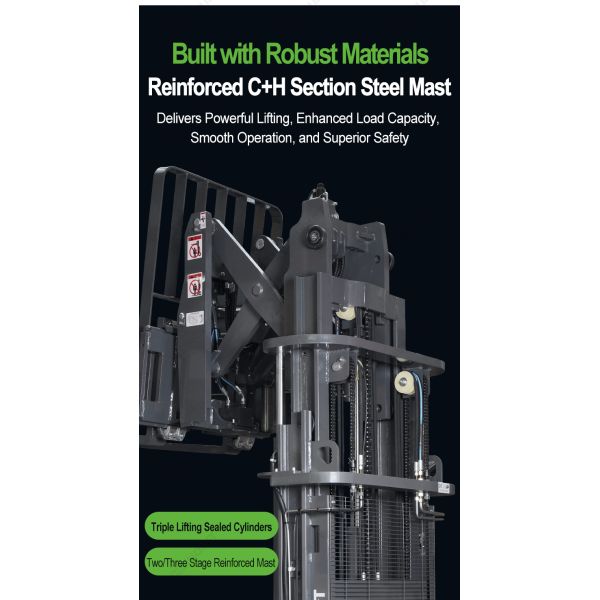

Robust & Stable Performance: Engineered with a heavy-duty structure, including a reinforced C+H steel mast, triple-sealed cylinders, and reinforced chains, it ensures powerful, smooth, and safe lifting of loads up to 2 tons without deformation.
Advanced Electric Control: The Curtis AC drive system and high-power motors provide responsive, efficient, and longer-lasting power for both travel and lifting, enabling easy ramp climbing and progressive speed control.
Operator-Focused Design: An ergonomic smart handle with a proportional control valve allows for precise lifting via thumb pressure. Key functions like side-shift, tilt, and horn are all integrated for effortless, one-person operation.
Durable & Low-Maintenance: Built with premium components like leak-resistant integrated cylinders, maintenance-free AC motors, and long-lasting polyurethane wheels, it guarantees high uptime and reduced operating costs.
Enhanced Safety Features: Standard safety elements include an emergency reverse button, a high-strength protective mesh, a warning beacon, and a hydraulic system designed to prevent mast drops in case of pressure loss.

Application Scenarios:

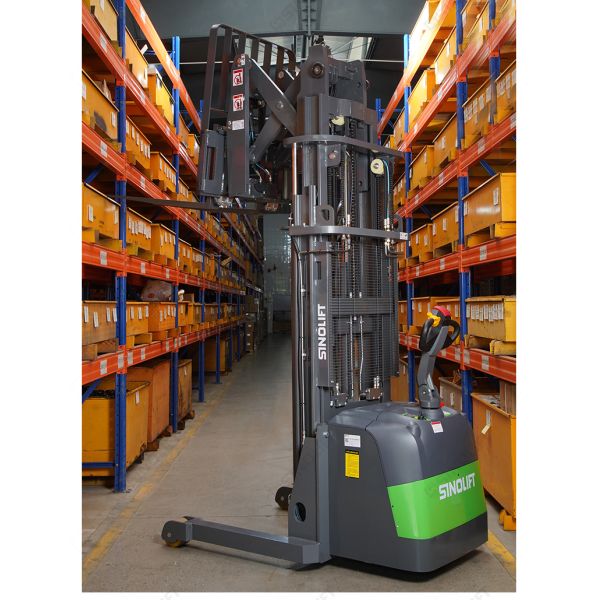

Ideal for maximizing space and efficiency in various material handling environments, including warehouse storage, retail stocking, dock handling, and express cargo logistics.

Product Specifications

Identiﬁcation	1.1	Manufacturer			SINOLIFT
	1.2	Model			CQDX15	CQDX20
	1.3	Power Type			Electric
	1.4	Type of Operation			Walkie
	1.5	Steering Mode			Electric Power Steering
	1.6	Load Capacity/Rated Load	Q	kg	1500	2000
	1.7	Load Center Distance	C	mm	500	500
	1.8	Load Distance, the center of drive axle to fork	x		160	160
	1.9	Wheelbase	y	mm	1415	1415
Weight	2.1	Total Weight (with Battery)		kg	2065	2600
	2.2	Axle Load (Laden): Drive side/Load-bearing Side			/	1
	2.3	Axle Load (Unladen): Drive side/Load-bearing side		kg	/	/
Tyre	3.1	Tyre Type			Polyurethane	Polyurethane
	3.2	Tyre Size (Front)		mm	Ø150x100	Ø150x100
	3.3	Tyre Size (Balance Wheel)			/	/
	3.4	Tyre Size (Driving Wheel)		mm	φ248x75	φ250x70
	3.5	Wheels Quantity, Front/Rear (x=Driving Wheels)			2/1x	2/1x
Dimension	4.1	Overall Length	L1	mm	2200	2140
	4.2	Overall Length (without Forks)	L4	mm	1655	1670
	4.3	Chassis Length to Face of Forks	L2	mm	1130	1130
	4.4	Lift Height	h3	mm	4500	4500
	4.5	Height with Mast Lowered	h1	mm	2090	2100
	4.6	Height with Mast Extended	h4	mm	5695	5705
	4.7	Free Lift Height	h5	mm	1530	1520
	4.8	Overall Width (Chassis/Straddle Leg)	b1/b2	mm	820/1500	820/1500
	4.9	Fork Dimension	l/e/s	mm	1070×100×35	1070×100×35
	4.10	Fork Spread Width	b5	mm	220-815	220-815
	4.11	Fork Mounting Class			2A	2A
	4.12	Fork Carriage Spread Width	b3	mm	835	835
	4.13	Fork Carriage Tilt (forward/backward)	α/β	°	2/5	2/5
	4.14	Fork Carriage Height	h6	mm	1160	1160
	4.15	Inner Width of Straddle Leg	b4	mm	1220	1200
	4.16	Reach Distance	L3	mm	570	590
	4.17	Height of Fork Carriage	h6	mm	1160	1160
	4.18	Ground Clearance at the Center of Wheelbase (Min.)	m1	mm	54	56
	4.19	Turning Radius (Pedal Retracted/Expanded)	Wa	mm	1610	1460
	4.20	Min. Aisle Width (Pallet size 1000*1200)	Ast	mm	2625	2556
	4.21	Min. Aisle Width (Pallet size 800*1200)	Ast	mm	2665	2615
Performance	5.1	Traveling Speed (Laden/Unladen)		km/h	3.9/4	3.5/4
	5.2	Lifting Speed (Laden/Unladen)		mm/s	150/200	100/200
	5.3	Lowering Speed (Laden/Unladen)		mm/s	300/300	200/100
		Pantograph Reaching Speed (Laden/Unladen)		mm/s	70/60	70/60
	5.4	Max. Gradient Performance S2 5min (Laden/Unladen)		%	6/15	6/10
	5.5	Service Brake Type			Electromagnetic	Electromagnetic
	5.6	Parking Brake Type			Electromagnetic	Electromagnetic
Power Unit	6.1	Drive Motor Rating (AC) S2-60min		kw	1.5	2.2
	6.2	Lift Motor Rating (DC) S3 15%		kw	4.5	4.5
	6.3	Battery Voltage/Capacity LiFEPO4		V/Ah	24/200	24/200
	6.4	Battery Weight		kg	68	68
Others	7.1	Controller Brand			CURTIS	CURTIS
	7.2	Controller Model			AC F4-A	AC F4-A
	7.3	Sound Level at Driver's Ear According to EN12053		dB	70	70
